Construction of private environment website monitoring system - Uptime-kuma
Quickly build website monitoring tools and alarm systems
Why you need website monitoring tools
In a general environment where a website is deployed, the most important thing is to know whether the services provided by the website are down or whether the certificate has expired.
In the past, these things were monitored by writing scripts or programs, which was extremely troublesome for users without technical background. Especially after the monitoring is written, it also needs to be notified when something goes wrong, which undoubtedly makes reasonable monitoring more troublesome.
Adhering to the idea that for complicated things, you should first find ready-made tools online instead of relying on yourself. So there is today’s protagonist Uptime-kuma
If you want to experience the online interface and perform basic settings before installation, you can refer to the link below.
Then let’s start installing it in our own environment to experience the effect of unlimited use.
- An environment with Docker is required (installation method is as follows)
- Windows
- Run PowerShell or Windows Command Prompt as administrator to install WSL and then restart your computer
1wsl --install- Download Docker Desktop
- Ubuntu copy and paste in Terminal
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15sudo apt-get update sudo apt-get install \ ca-certificates\ curl \ gnupg\ lsb-release sudo mkdir -m 0755 -p /etc/apt/keyrings curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg echo \ "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu \ $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null sudo apt-get update sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin -y sudo gpasswd -a $USER docker newgrp docker
- Windows
Uptime-kuma installation
Enter Power Shell/Terminal and enter the following command
|
|
- -d will make the container run in the background
- -restart starts docker and automatically starts monitoring
- -p The internal network port corresponds to the external (host) port number
- -v data storage location Add uptime-kuma folder to the current directory of the machine to synchronize the app/data directory of the container
Connection UI interface
If you want to experience the online interface and perform basic settings before installation, you can refer to the link below.
|
|
If Ubuntu does not have a desktop installed, you can refer to the following methods
|
|
UI settings

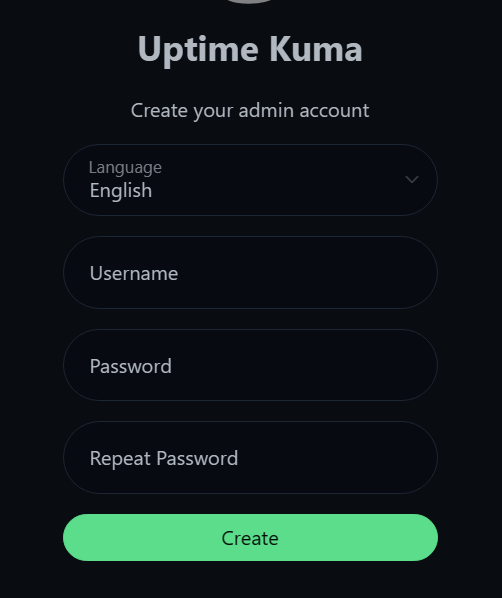

Entering the UI requires setting an account and password.
Start with the simplest web page monitoring

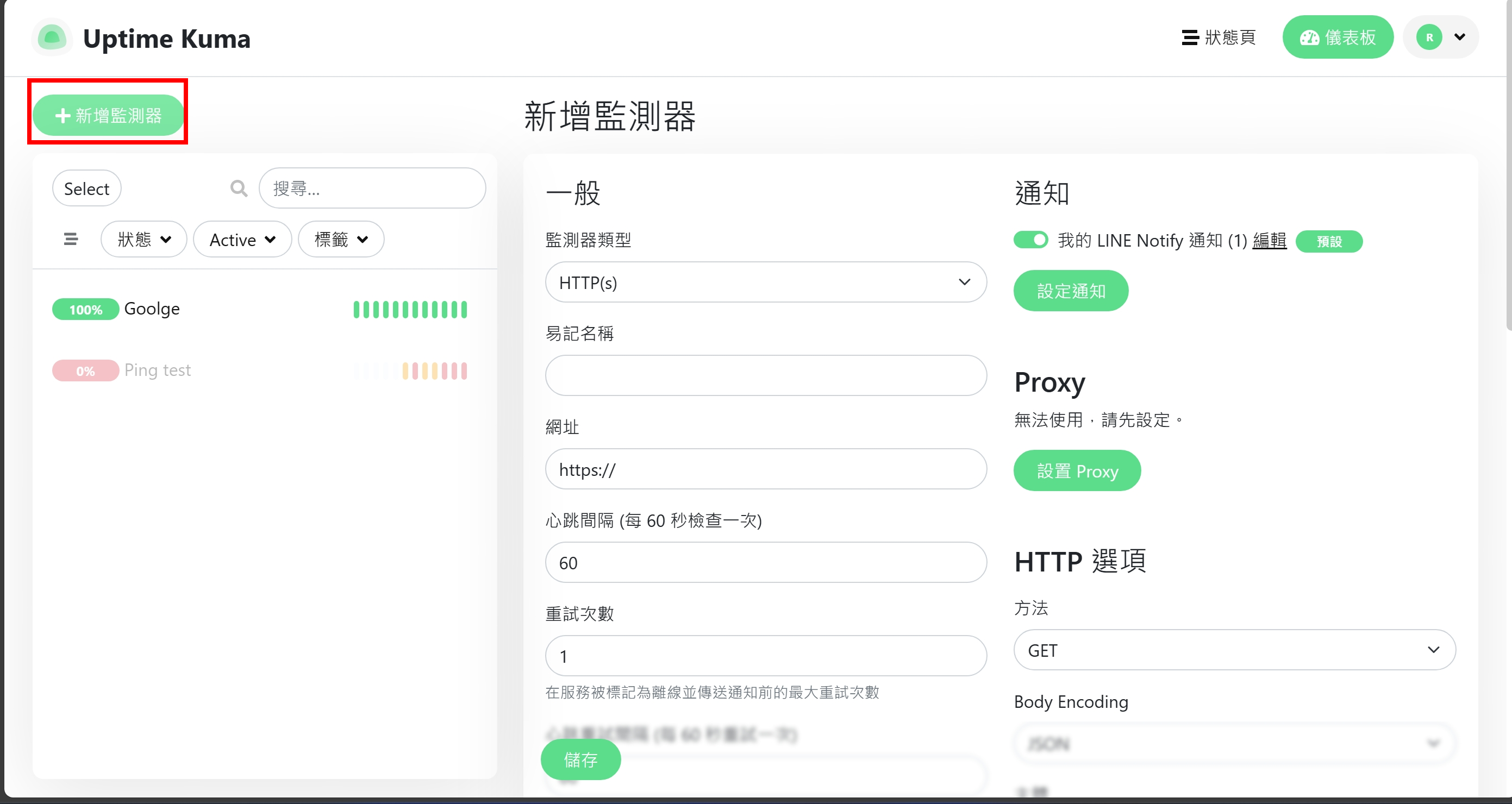

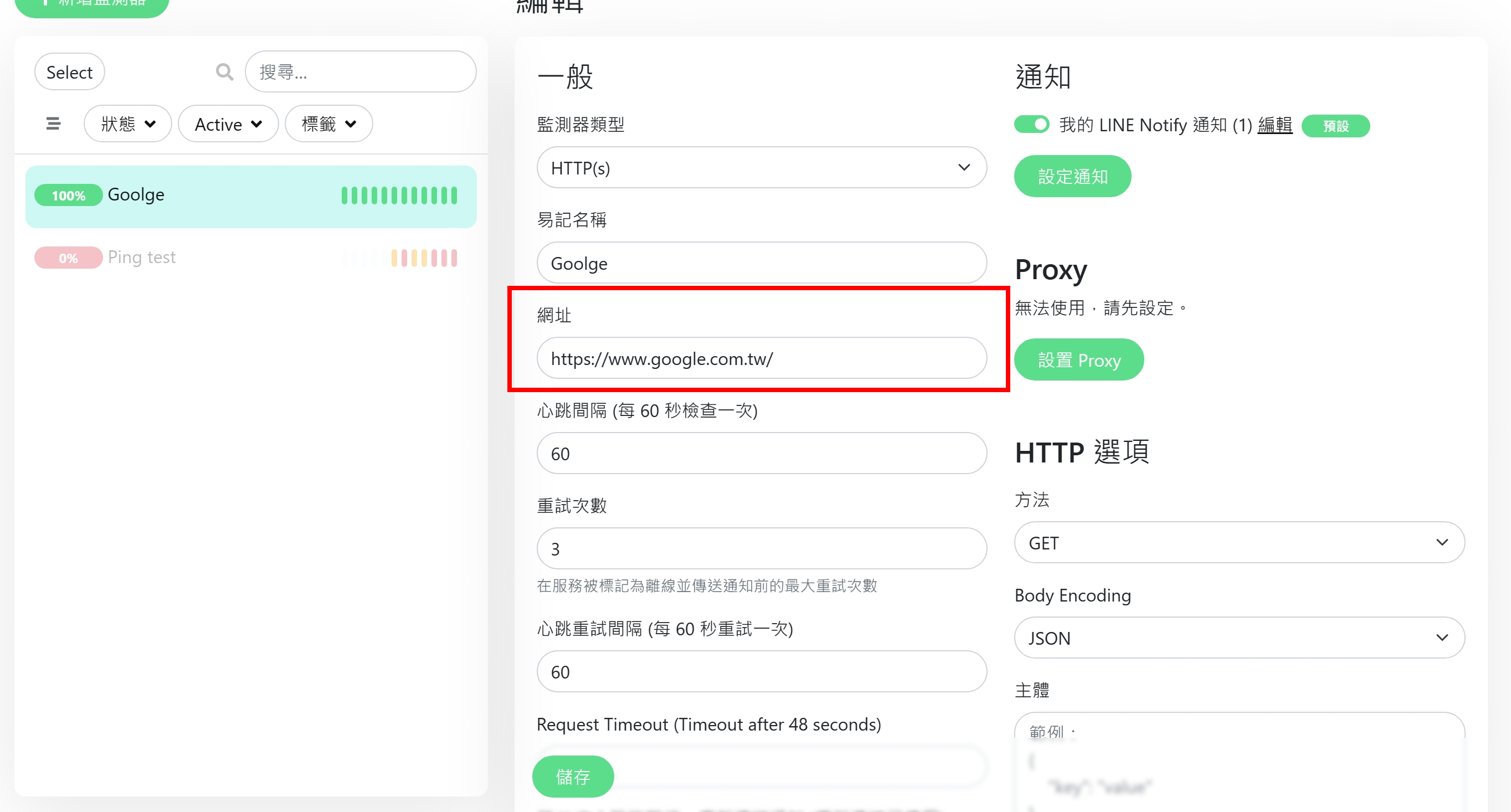

Enter the URL to be monitored

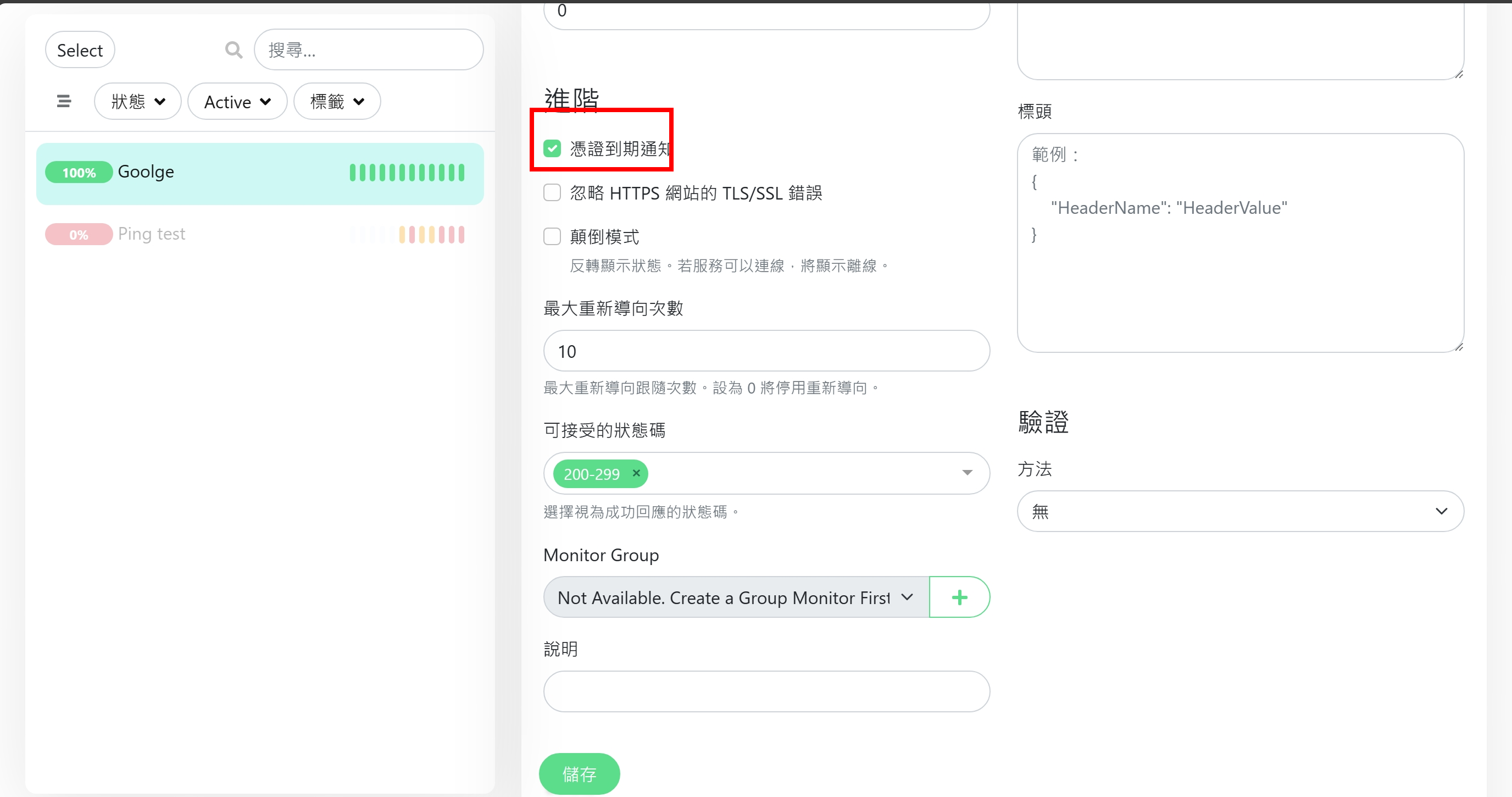

If you have advanced needs, you can also check the box to check the remaining days of the voucher.
Alarm system Line Notify settings

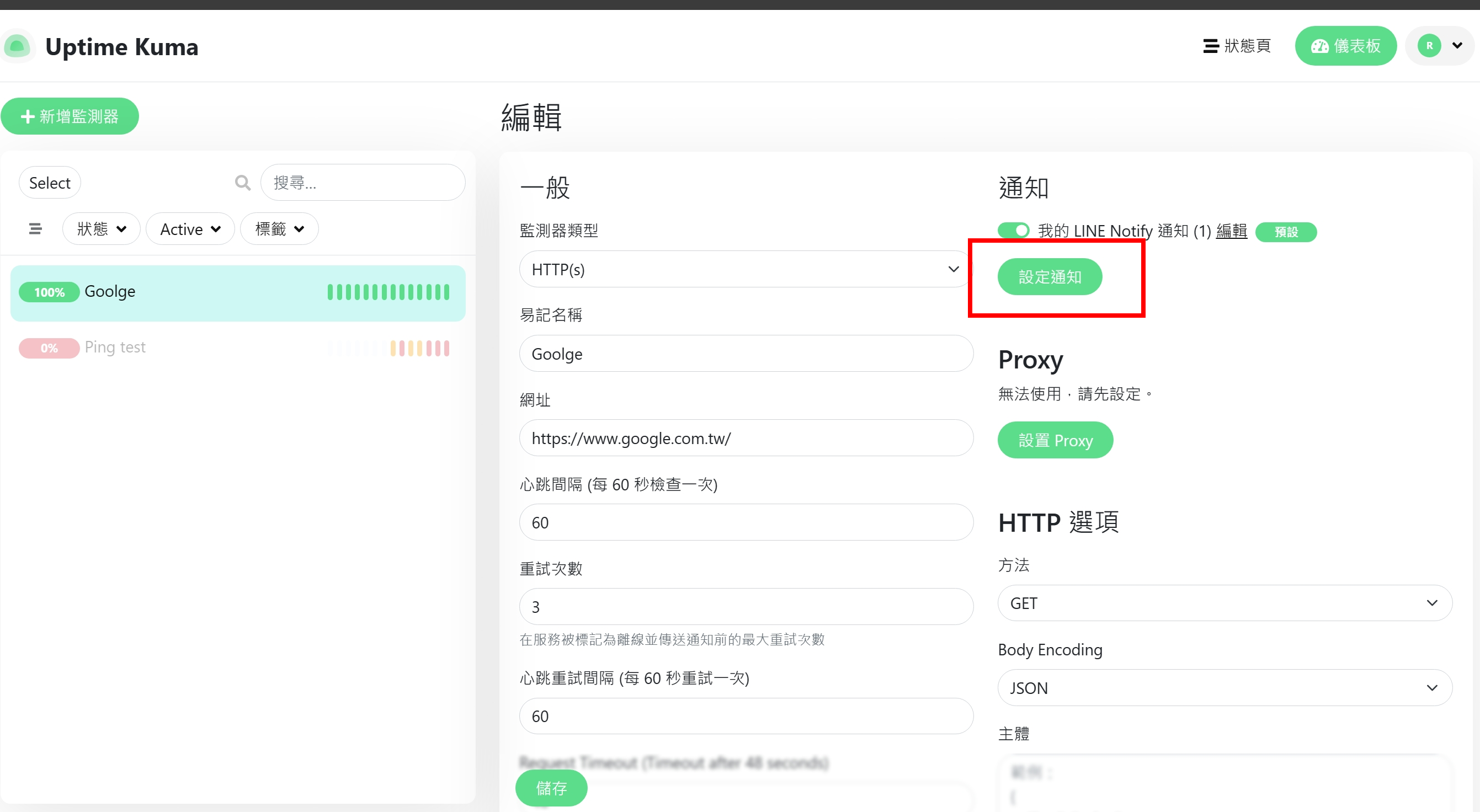

Can set more than one notification

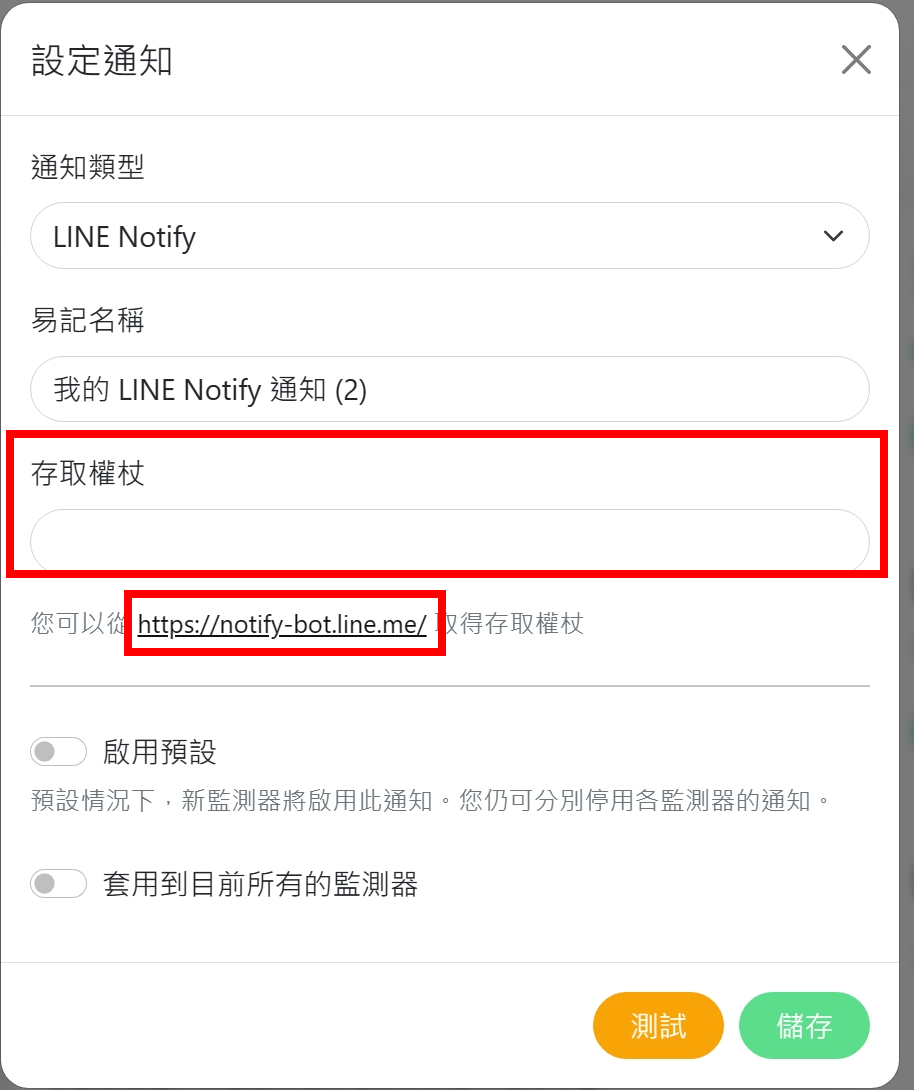

When you see that a token is required and there are instructions below on how to get it, click on the URL in the red box below.

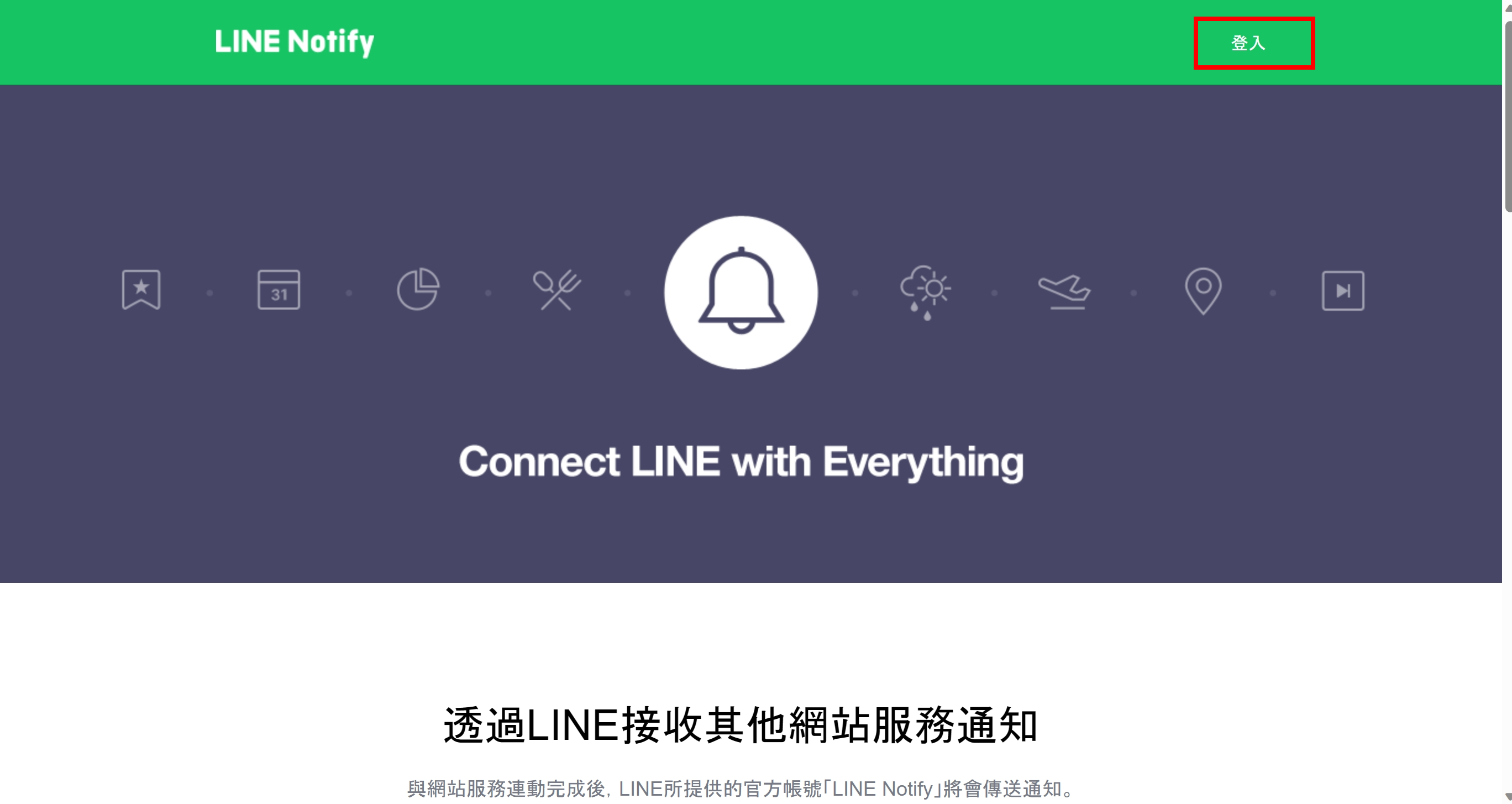

Click on the upper right corner
You can choose to log in with an account or qrcode

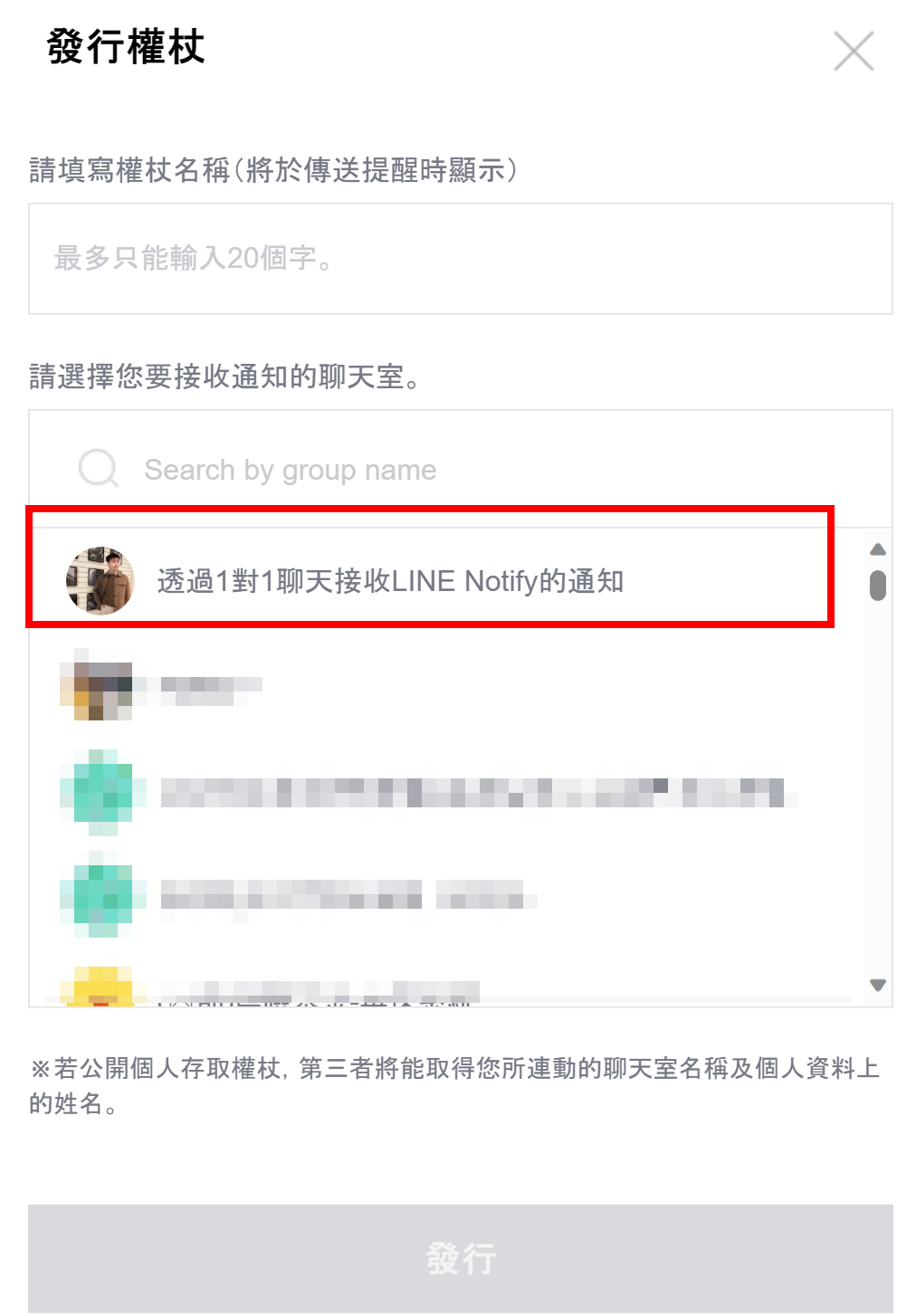

You can choose how notification is sent. It can be directed to individuals or in groups. Test first to see the effect on 1-on-1 basis.

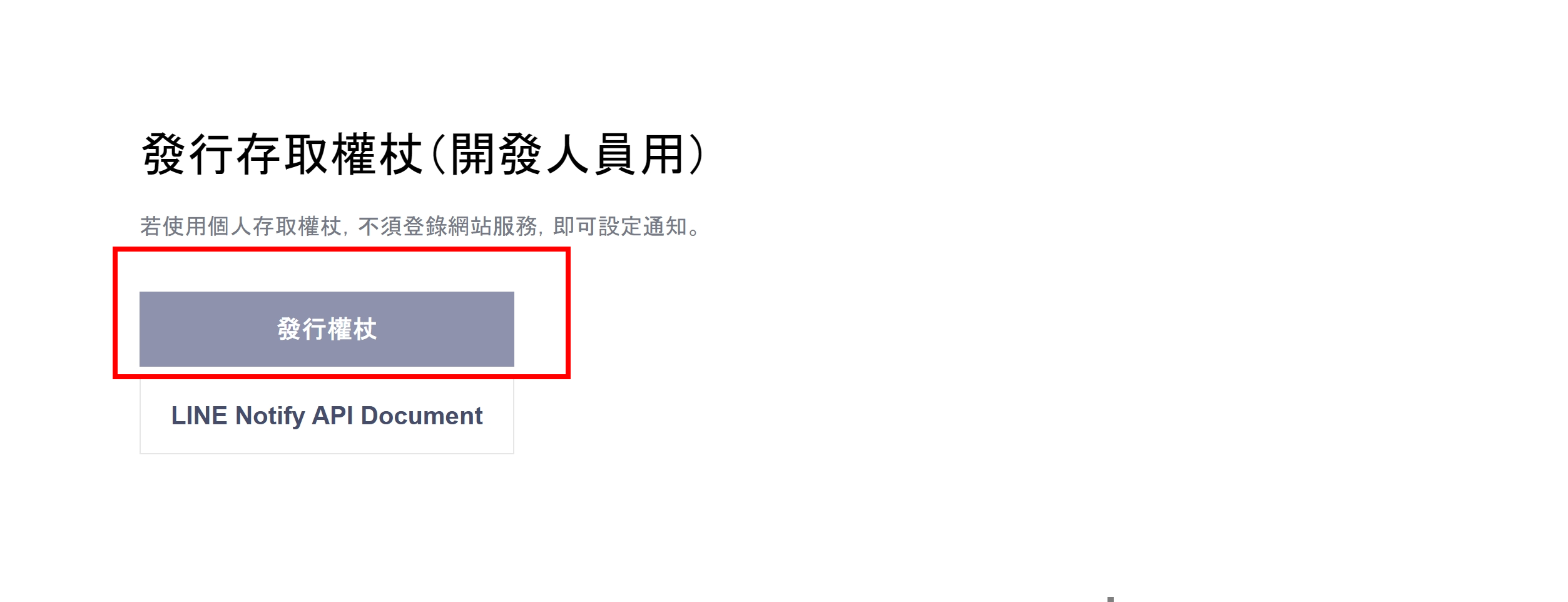

After logging in, scroll to the bottom and click Issue Token

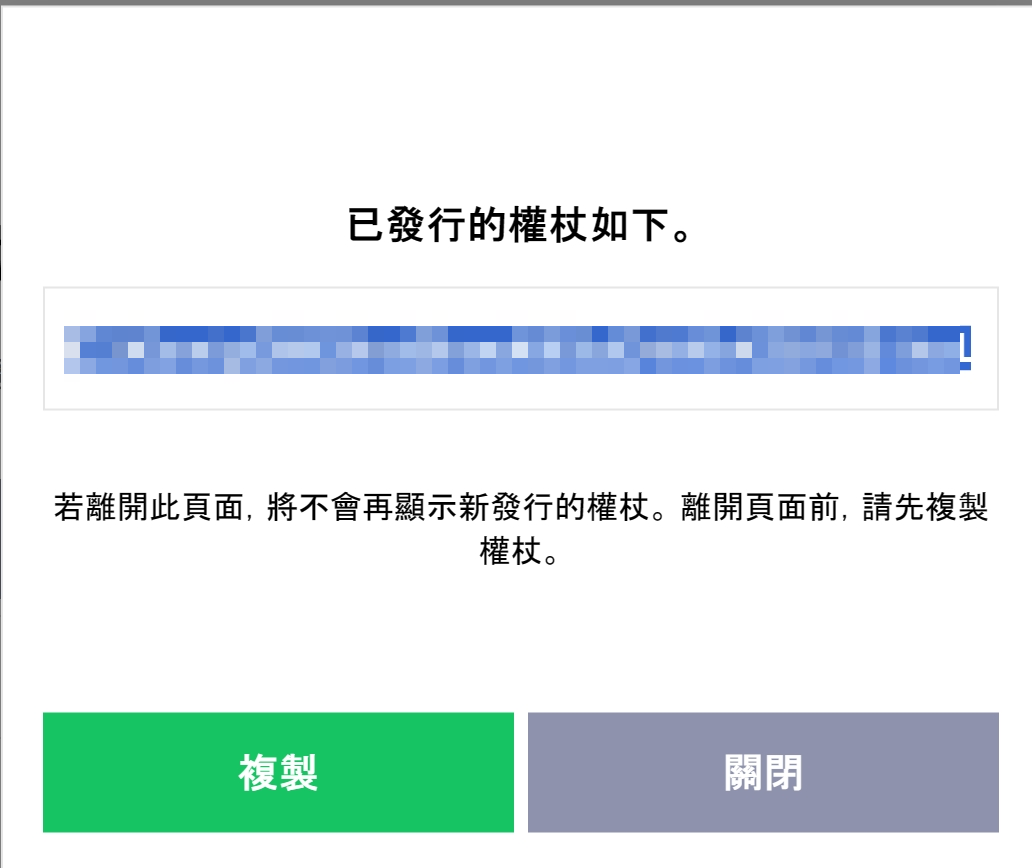

Just get the token and fill it back into the web page
Simulation monitoring failure example

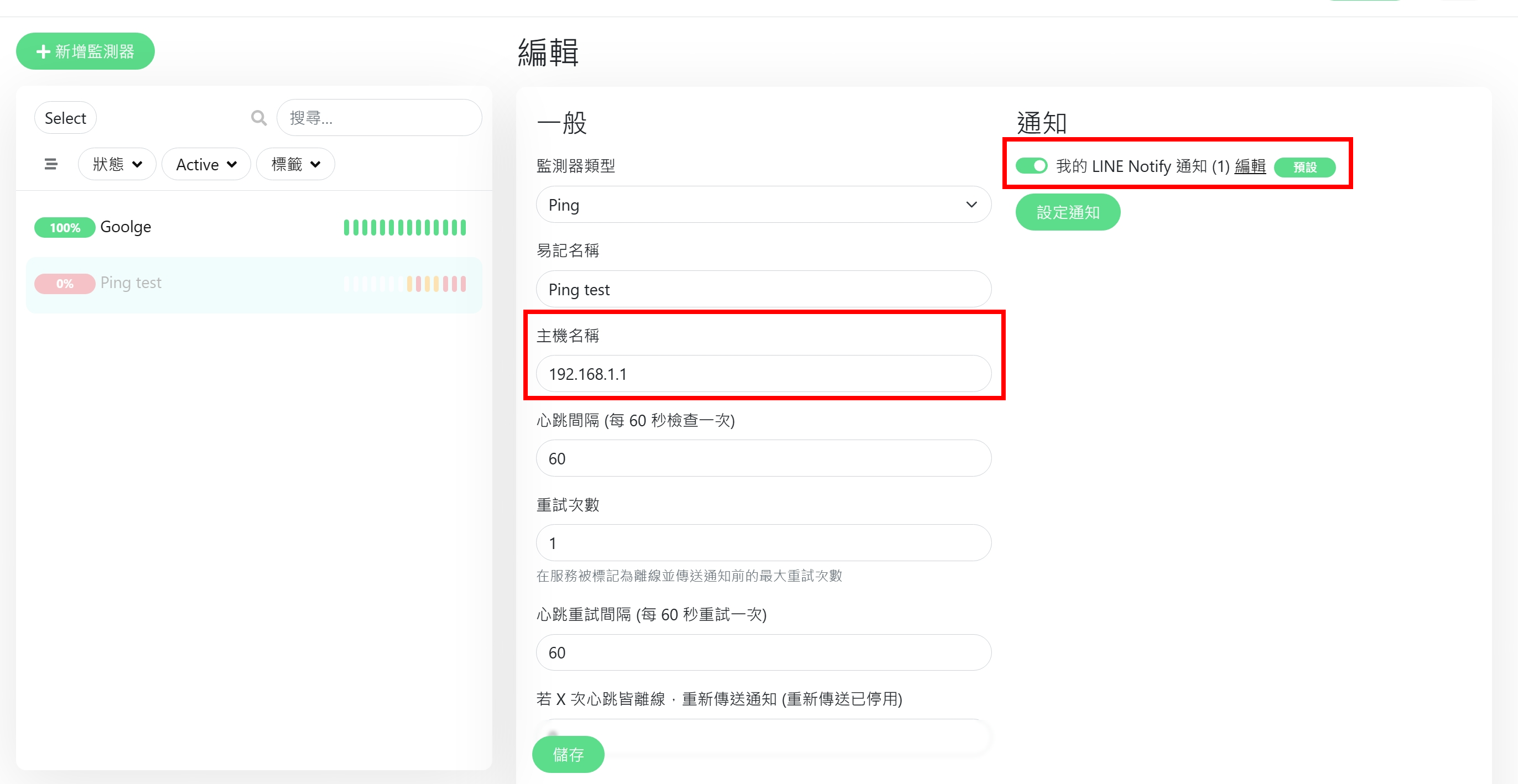

The configuration file of Ping is as follows. The type of ping and simulation of a non-existent URL are combined with notification settings.

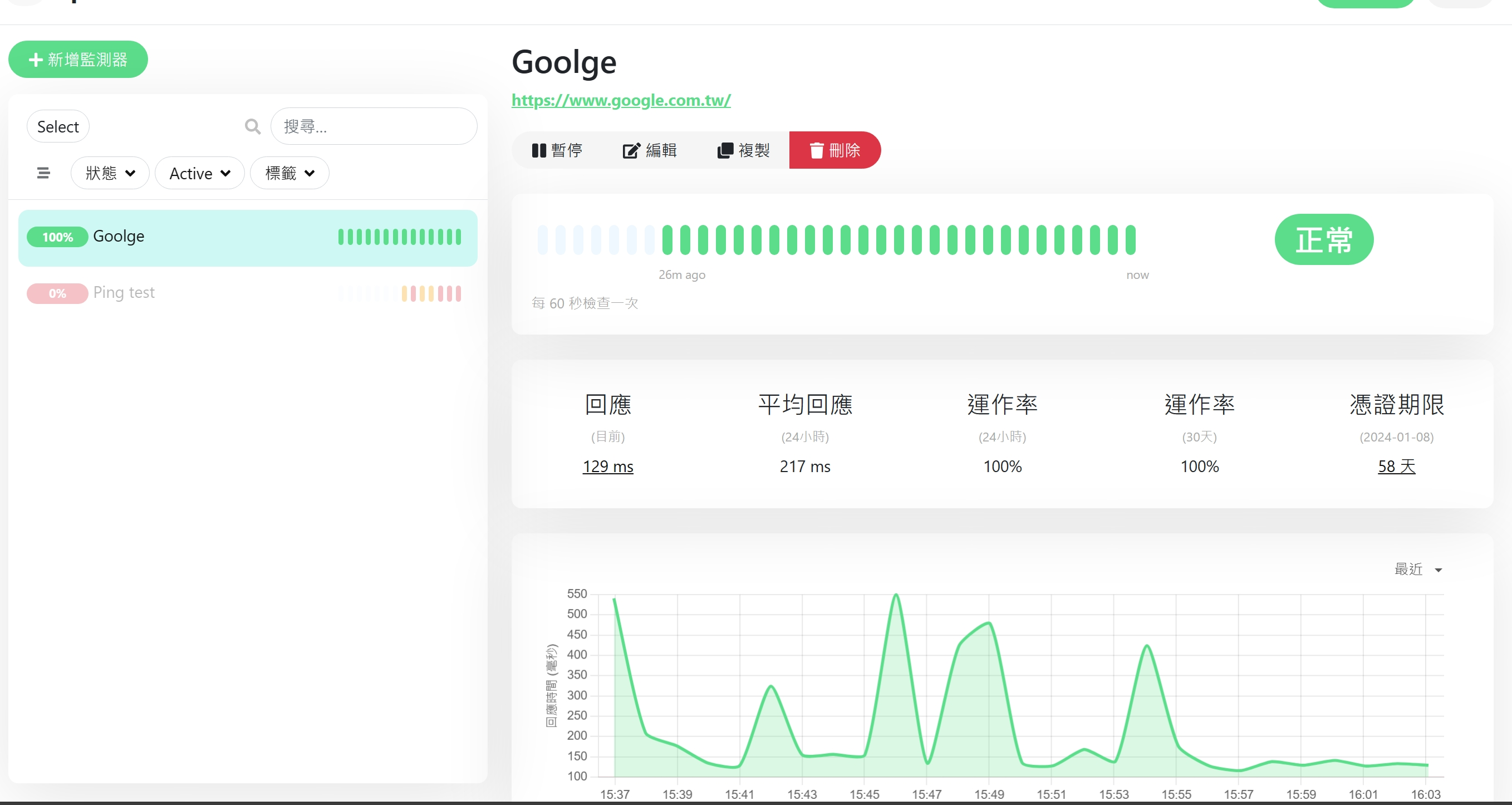

result
It can be seen that the website’s response time is 0.2 seconds on average, the response rate is normal and the certificate expires in 58 days.

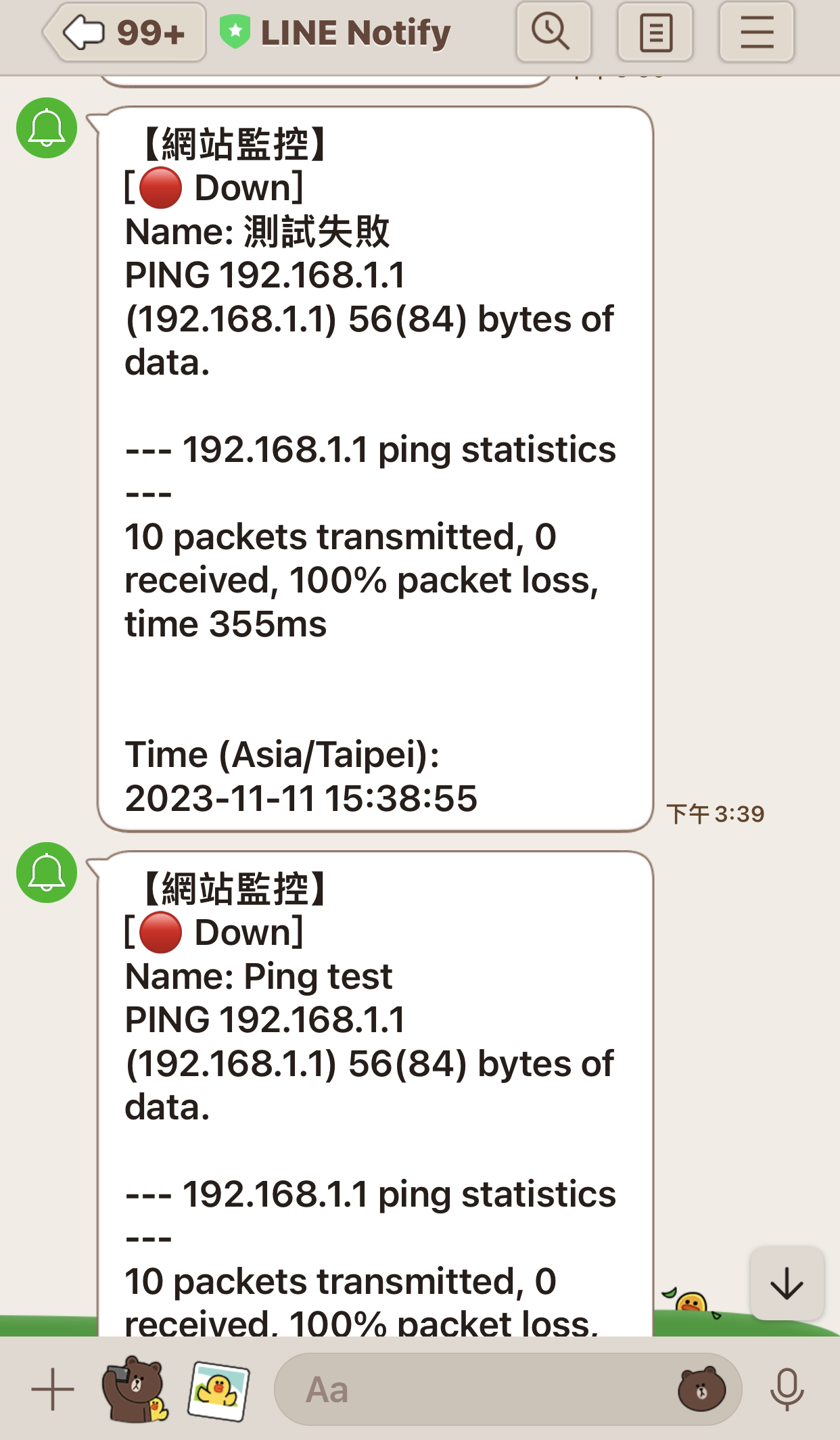

If it fails, a message will be sent
